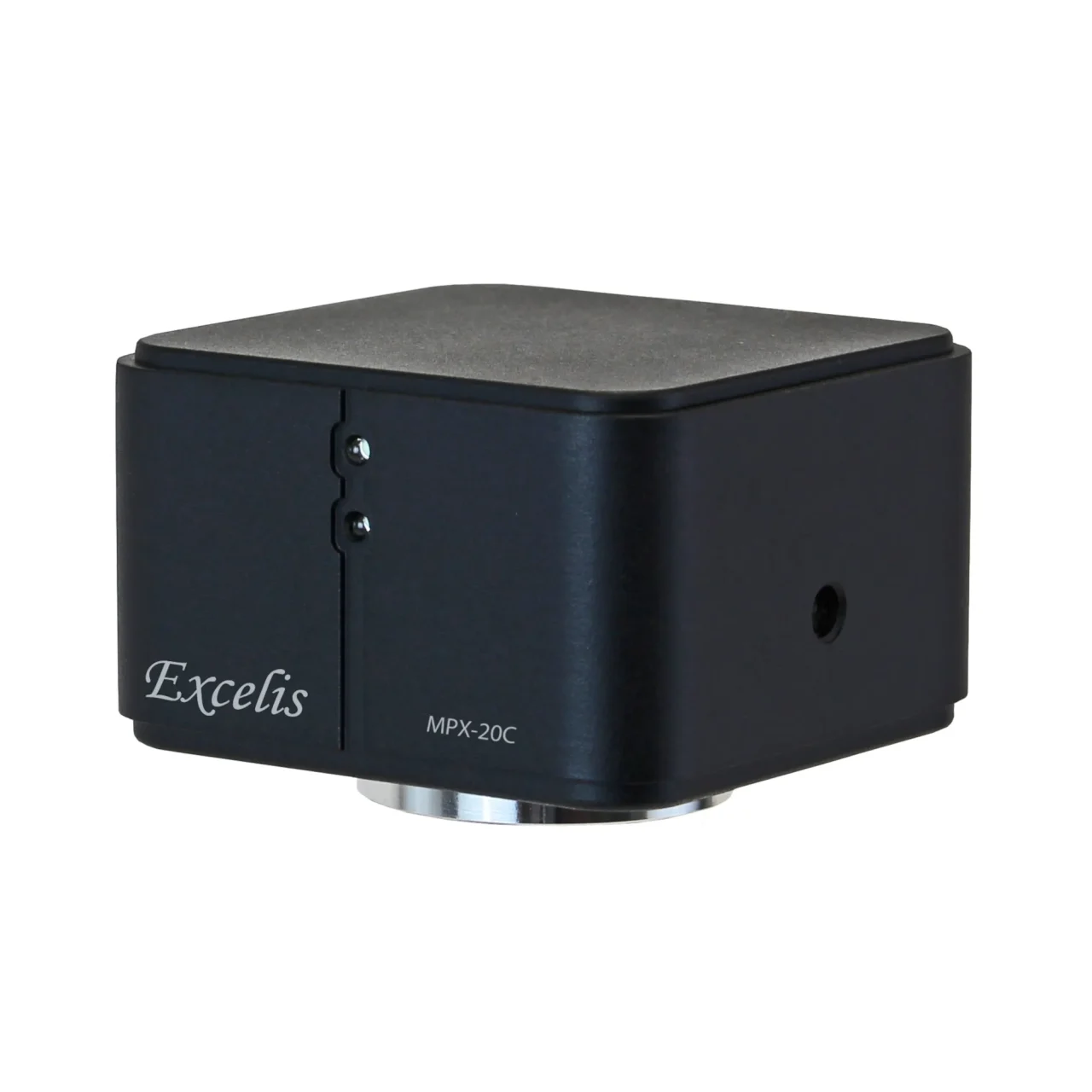

EXCELIS™ MPX-20C

The Excelis™ MPX-20C color camera delivers excellent performance for routine microscopy imaging applications. A Sony Exmor™ back-illuminated CMOS sensor is at the core of the MPX-20C and features a rolling shutter for high resolution and great color at fast frame rates. The large 1″ sensor delivers a massive 20MP image. Lightning-fast data transfer across a USB 3.0 cable ensures stunning live views of the specimen. The new CaptaVision+ software also brings a new dimension to imaging with real-time stitching, real-time intelligent flatfield correction, depth of field fusion, dynamic measurements, and much more!

Get a Quote

Description
Specifications

KEY FEATURES

Outstanding Performance for Routine Imaging

The Excelis MPX-20C captures images with excellent color reproduction at a blazing fast 40fps via USB 3.0 connection to a Windows or MacOS computer. View live images and control all features of the MPX-20C with our FREE CaptaVision+ software for Windows and MacOS. The combination of the 2.4μm pixels, high 20MP resolution and fast rolling shutter make the MPX-20C is a great choice for low magnification imaging such as using stereo microscopes, and as an all-around capture device where fast frame rates are not essential.

SONY Camera Sensor

The MPX-20C is based on the Sony Exmor® IMX183 CMOS camera sensor. The rolling shutter delivers crisp images even at speeds up to 15fps. With back-illumination, the IMX183 sensor provides all three advantages of high resolution, high sensitivity and high dynamic range. Use binning during imaging to achieve faster frame rates.

NDAA Compliant for Your Security

The Excelis MPX-20C is fully compliant with the McCain National Defense Authorization Act 889 (NDAA 889)! It does not use any electronics or components from prohibited suppliers. You can learn more at the Federal Register.

Powerful CaptaVision+ Software

Our FREE CaptaVision+ software brings excellent camera controls and new dimensions to imaging including real-time intelligent flatfield correction, dynamic measurements, automatic counting, and much more! Key software features include:

Intuitive & customizable user interface
Capture still images, record live and time lapse video
Simple calibration and measurements
Advanced control of exposure, gain, color balance, etc.
Powerful image processing tools
Flexible report generation and data export

CaptaVision+ is available for both Windows and MacOS. Learn more about CaptaVision+ HERE.

Specifications

MODEL
AU-20C-CMOS

SENSOR
Sony IMX183 Exmor color CMOS

SENSOR SIZE
1″; 1x C-mount adapter recommended

RESOLUTION
5472 (H) x 3648 (V); 20MP

PIXEL SIZE
2.4µm x 2.4µm

FRAME RATE
15fps @ full frame (5472×3648), 53fps @ 2736×1824, 67fps @ 1824×1216

SHUTTER MODE
Rolling

IMAGE TRANSMISSION
USB 3.0

IMAGE CAPTURE
USB to PC

EXPOSURE TIME
18μs – 15sec

BINNING
2×2, 3×3, 4×4

WHITE BALANCE
Automatic and manual

MANUAL SETTINGS
Gain, Gamma, Noise Reduction, Flatfield Correction, and more

ADC DEPTH
8-bit / 16-bit

OPERATING CONDITIONS
-10 – 45°C

DATA INTERFACE
USB3.0 or USB 2.0

POWER SUPPLY
Power over USB

CAMERA SIZE / WEIGHT
68 x 68 x 46mm / 327g

PC Imaging Software
CaptaVision+ Imaging Software (for PC/Windows and Mac OS)
Advanced Camera Controls: live and still image measurement and annotation, real-time flatfield, ROI and mask, histogram, smoothing;
fluorescence image settings; fluorescence multi-color channel mixer merge;
Image Types: JPG, PNG, TIF and DICOM (not available on Mac OS)

System Requirements (for PC Imaging Software)
Intel Core i5 processor (Dual Core or more); 16GB RAM or more; USB 2.0 Hi-Speed port or higher
Windows 7, 8, 10, 11 (64-bit recommended); Mac OS 10.4 or higher
