EXC-100

The EXC-100 student microscopes boast convenience and performance from every angle. Rugged, die-cast aluminum alloy frames are designed for years of use. Focus and stage controls are ergonomic and intuitive. LED illumination stays cool to the touch, lasts for years, and is rechargeable! Our Achromat objectives deliver crisp images with vibrant color. Try one of our models with built-in WiFi camera and tablet for even greater engagement!

Get a Quote

Description
Specification

Go Digital!

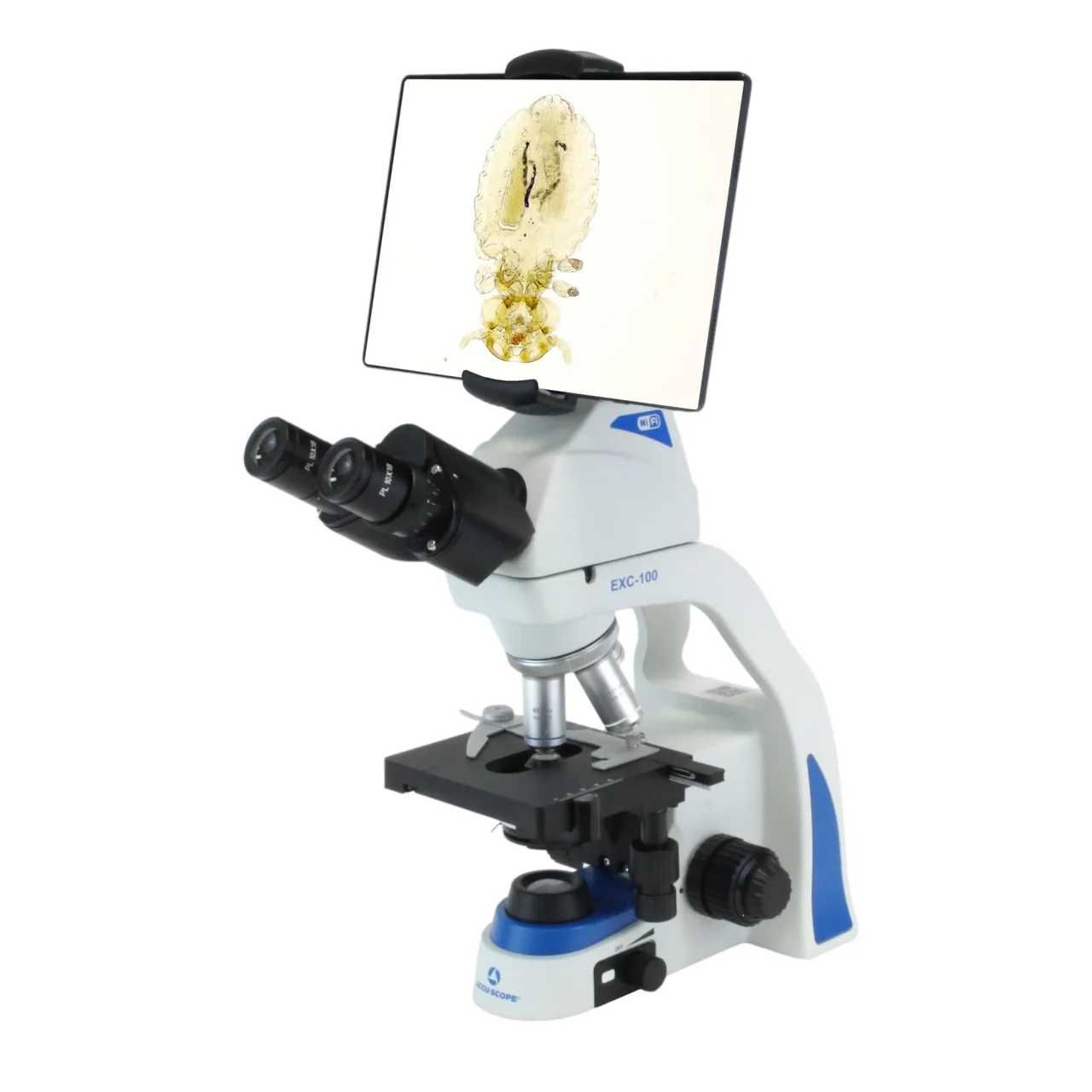

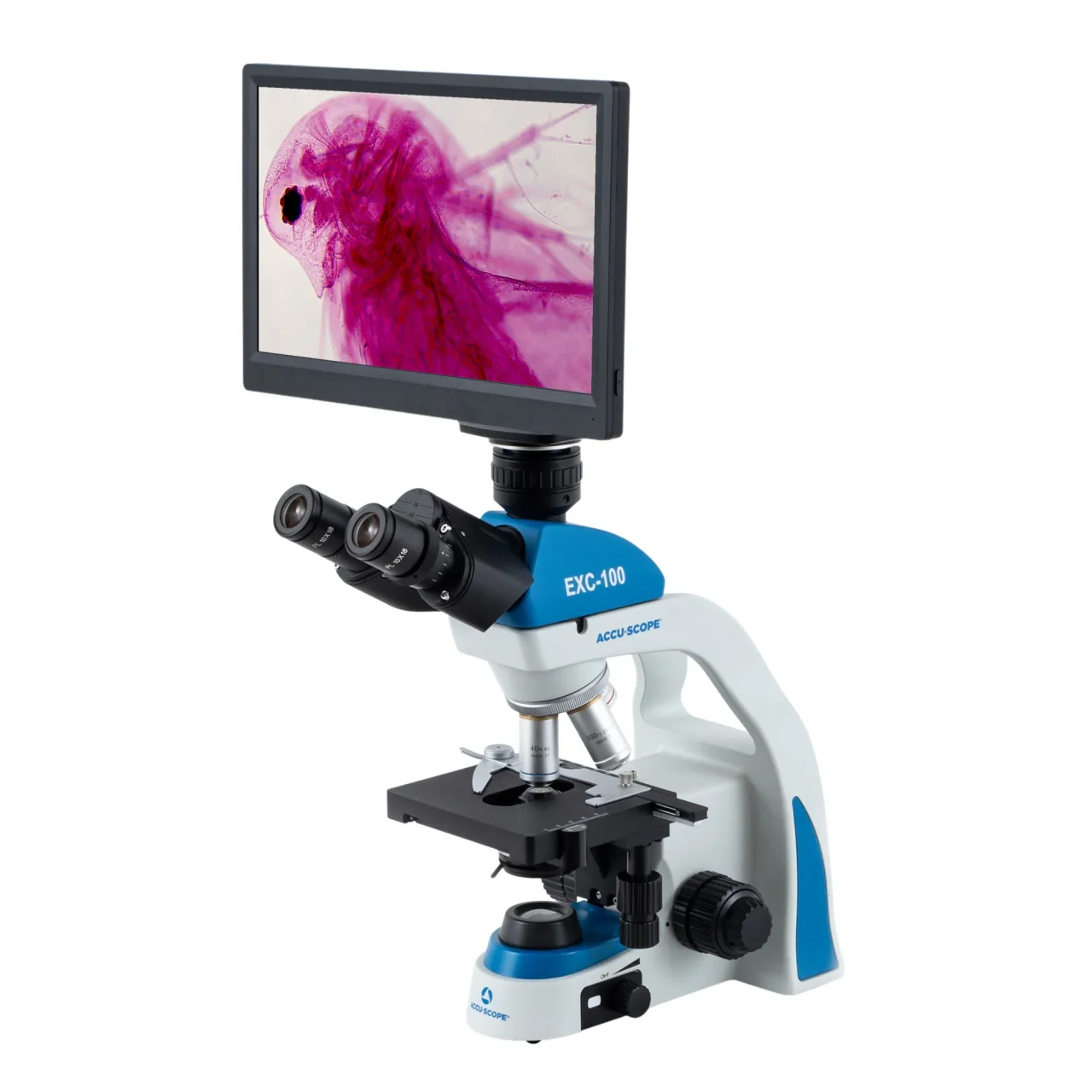

Digital cameras make science even more engaging by displaying the samples on a mobile device or bigger screen. Multiple students can view the images simultaneously, enabling interaction and group work. WiFi-enabled digital cameras are built right into the EXC-100-WB and EXC-101-WM models and include Android tablets. Use our MicroSNAP app to control the WiFi camera and display images. Digital cameras are also available for trinocular models (EXC-103).

KEY FEATURES

Versatility to Meet Your Viewing Needs

Today’s classrooms require various viewing options to meet different needs and budgets. The EXC-100 Series offers several viewing head options to accommodate a multitude of learning environments.

Economical, Convenient LED Illumination

The LED light in the EXC-100 Series uses much less energy than traditional microscopes, plus it’s rechargeable, so the microscope can be operated with or without a cord.

Easy Set-Up, Easy Storage

The EXC-100 Series compact, space-saving design with an integrated handle and cord wrap make it an easy-to-use classroom microscope. The ruggedly built yet lightweight cast aluminum alloy design allows the EXC-100 to withstand the rigors of classroom environments.

Specification

Viewing Head

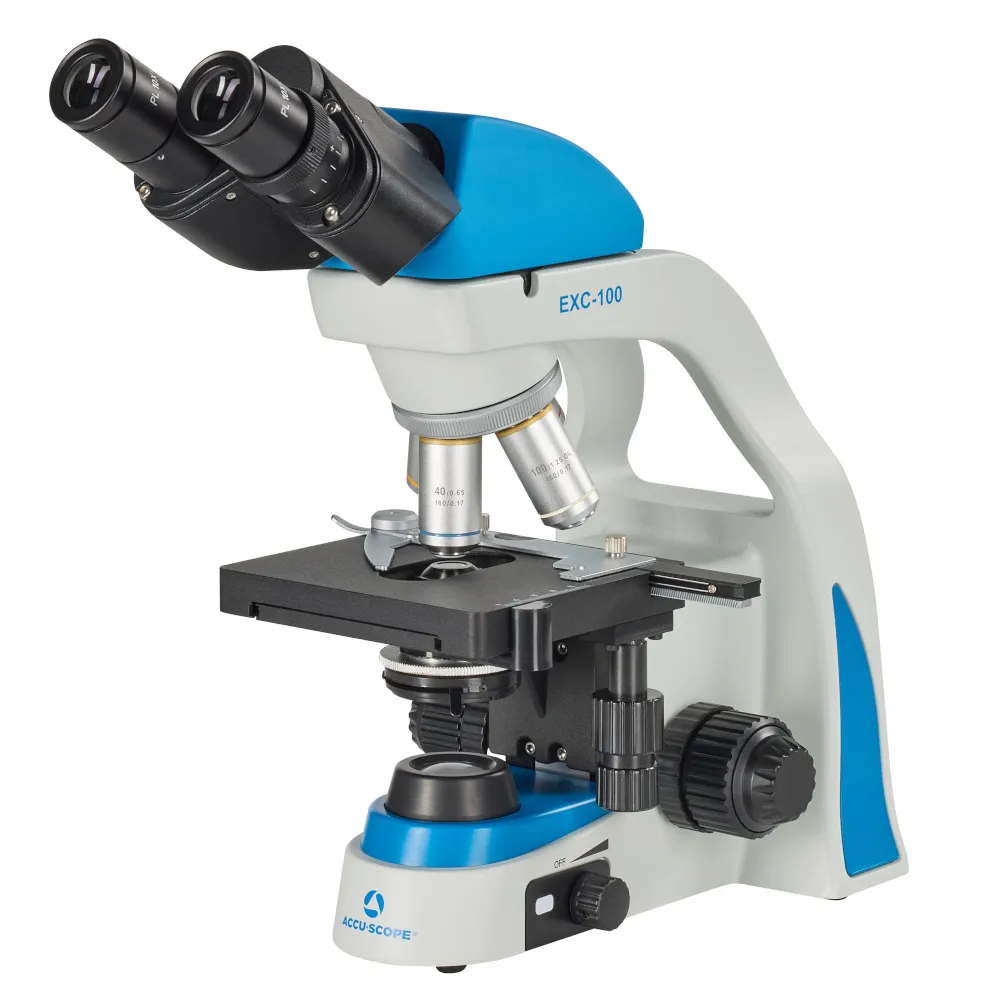

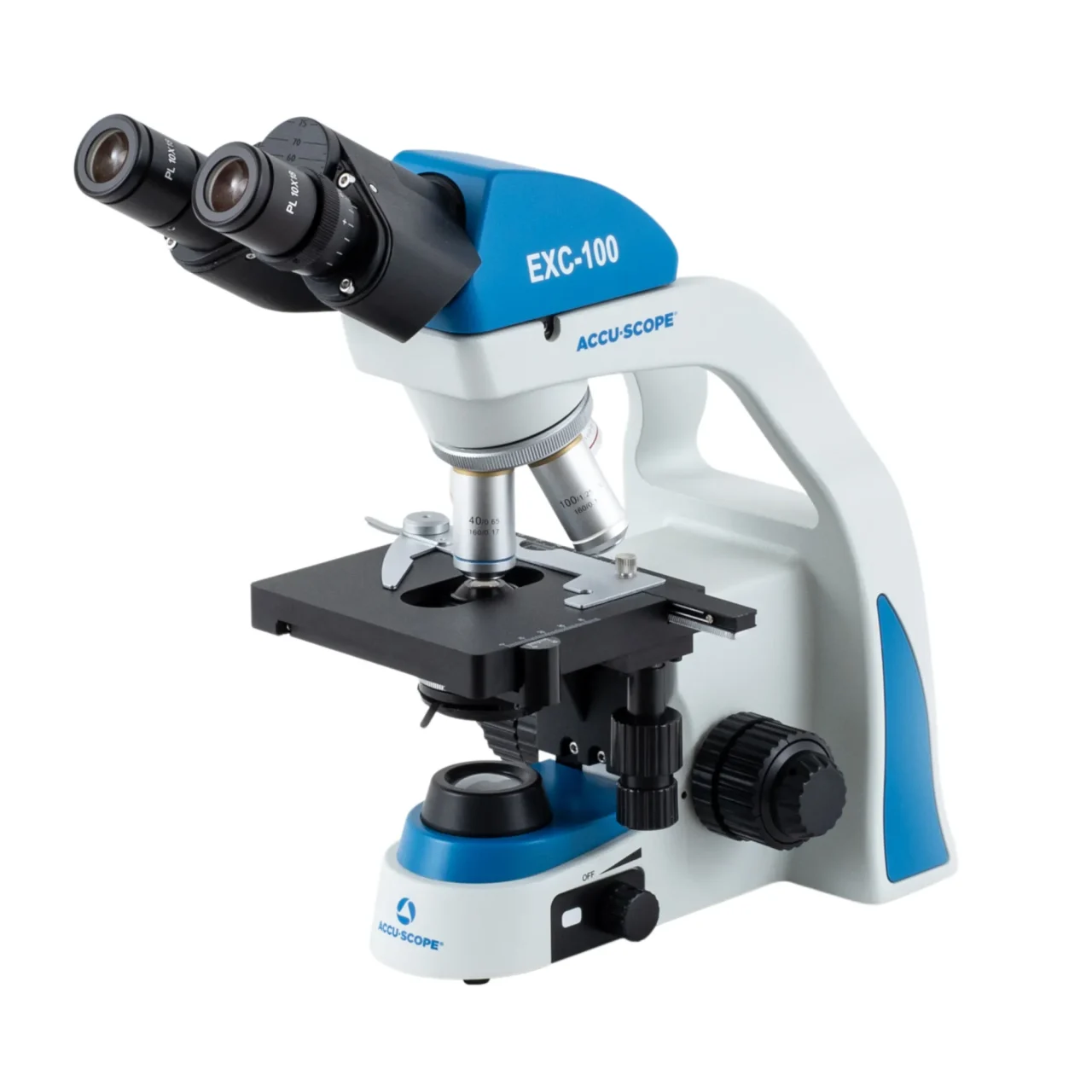

EXC-100: Binocular, inclined 30°, rotatable 360°, adjustable interpupillary distance 50~75mm, right diopter adjustment
EXC-100-WB and EXC-100-WB3: Same as EXC-100, but with built-in 2MP WiFi camera

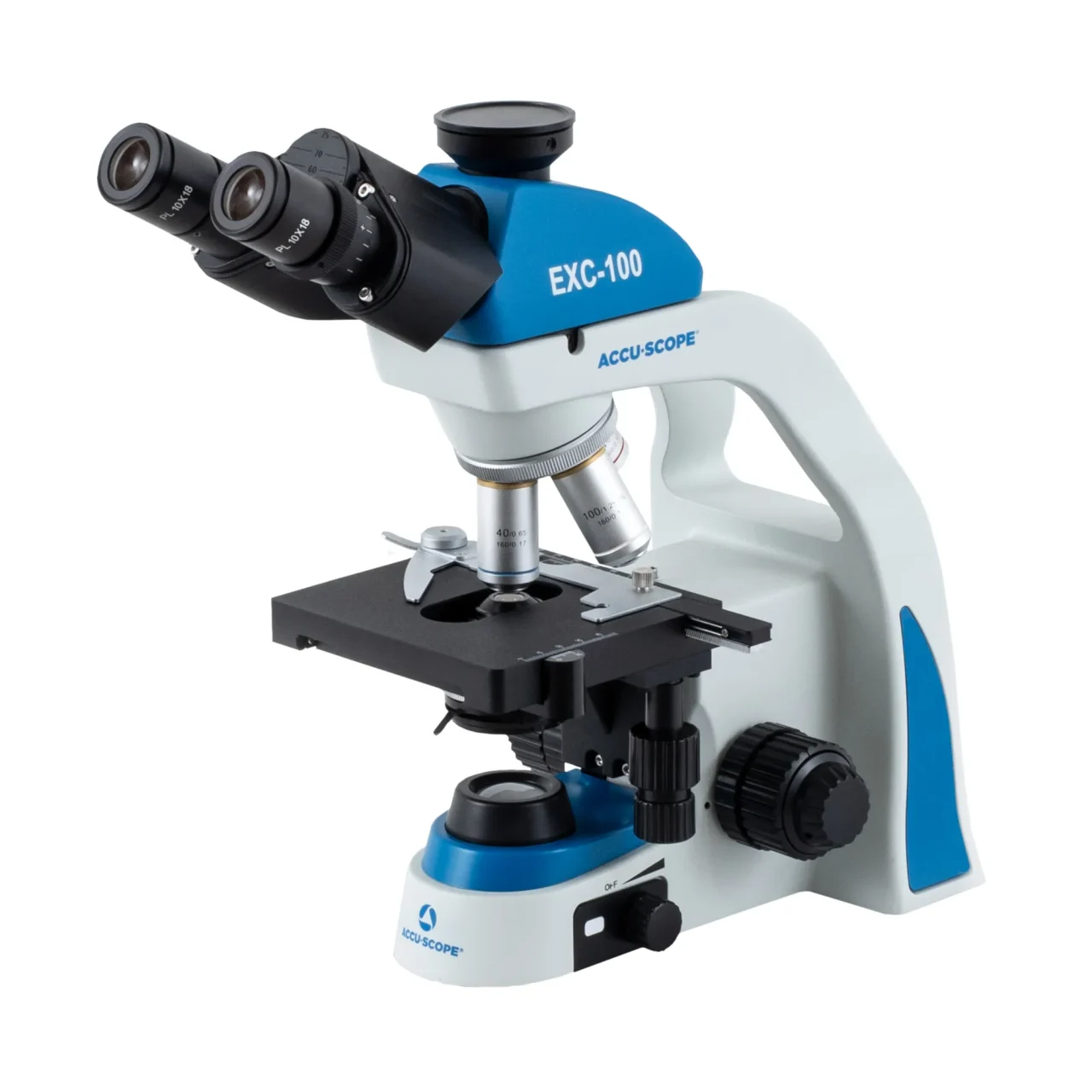

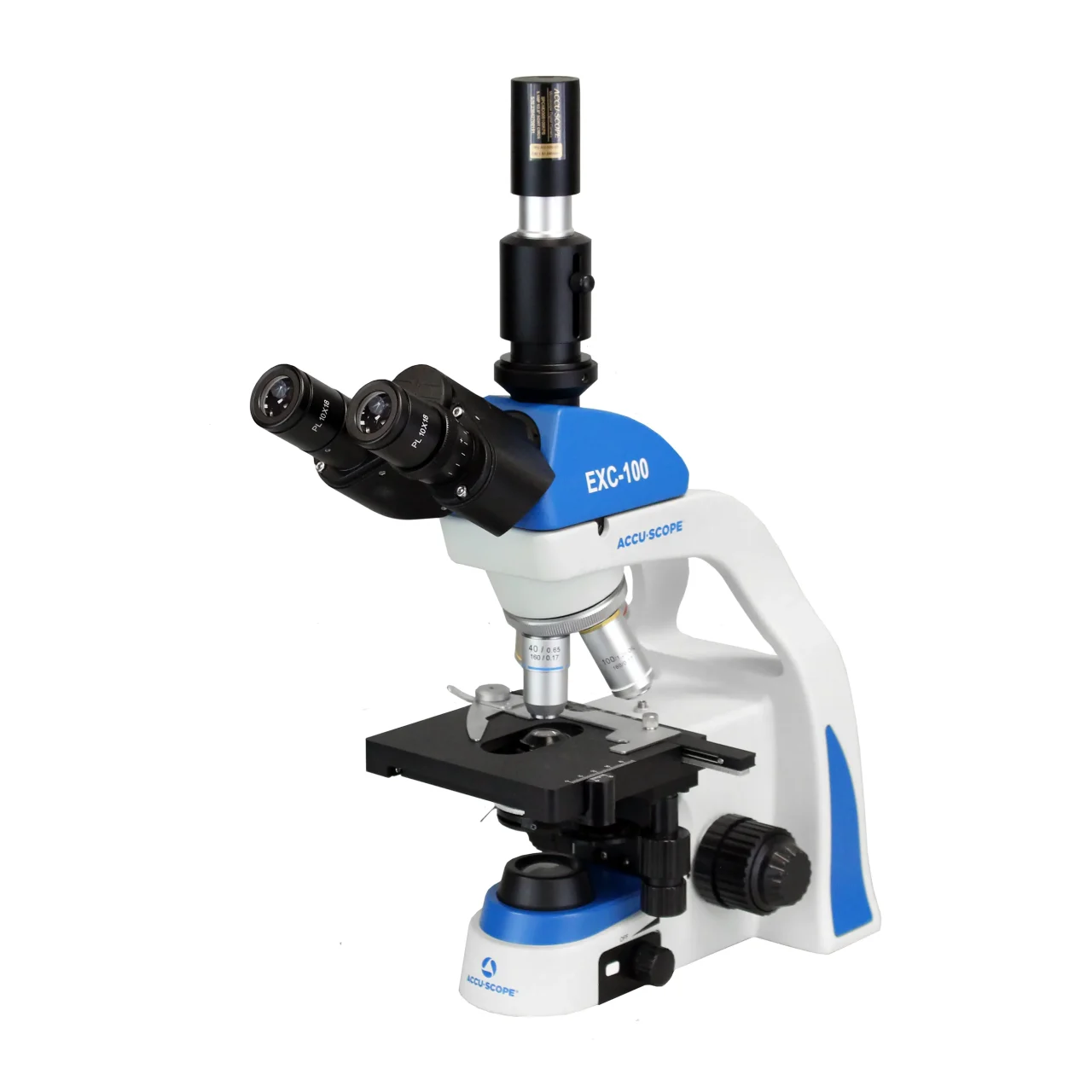

EXC-103: Trinocular, inclined 30°, rotatable 360°, fixed 50/50 light split (eyepieces/photo port), adjustable interpupillary distance 50~75mm, right diopter adjustment

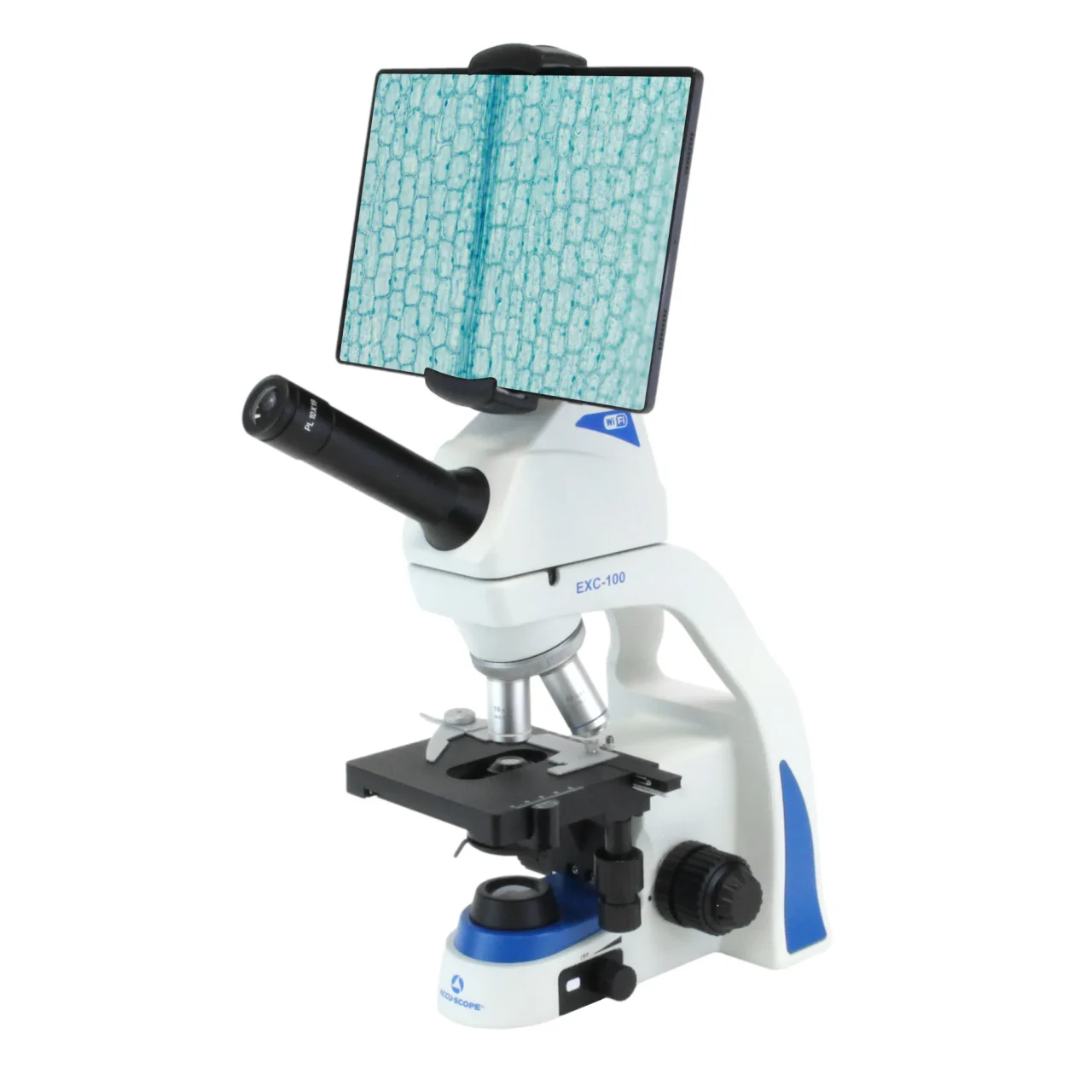

EXC-101-WB: Monocular, inclined 45°, rotatable 360°, built-in 2MP WiFi camera
Optical System
DIN Optical System, f = 160mm

Objectives
DIN Achromat 4x, 10x, 40x* and 100x*† oil objectives (* spring loaded; † not included with models EXC-100-WB3, EXC-101-WM3)

Eyepieces
WF10x eyepiece, 18mm field of view, pointer in one eyepiece. Eyepieces are locked-in to prevent classroom tampering.

Nosepiece
Rear-facing, 4-position nosepiece with positive click stops to ensure objective alignment

Focusing System
Coaxial coarse and fine focus, focus tension adjustment; focus travel stop

Stage
Double-layer mechanical stage, right side XY controllers, 115x125mm, slide holder

Condenser
N.A. 1.25 condenser, iris diaphragm, filter holder

Illumination
Variable and rechargeable‡ 1W LED illuminator (‡requires three AA 1300mAh 1.2V NiMH batteries, included). The rechargeable batteries only power the LED illuminator in models with built-in WiFi camera — the microscope can be used with the eyepieces, but the camera will not operate.

Stand
Cast aluminum alloy with built-in carry handle and power cord wrap
Power
Universal power supply (built-in); input 100-240VAC, output 5V 1A

Accessories
Instruction manual, dust cover

Camera Adapters
(EXC-103 only)

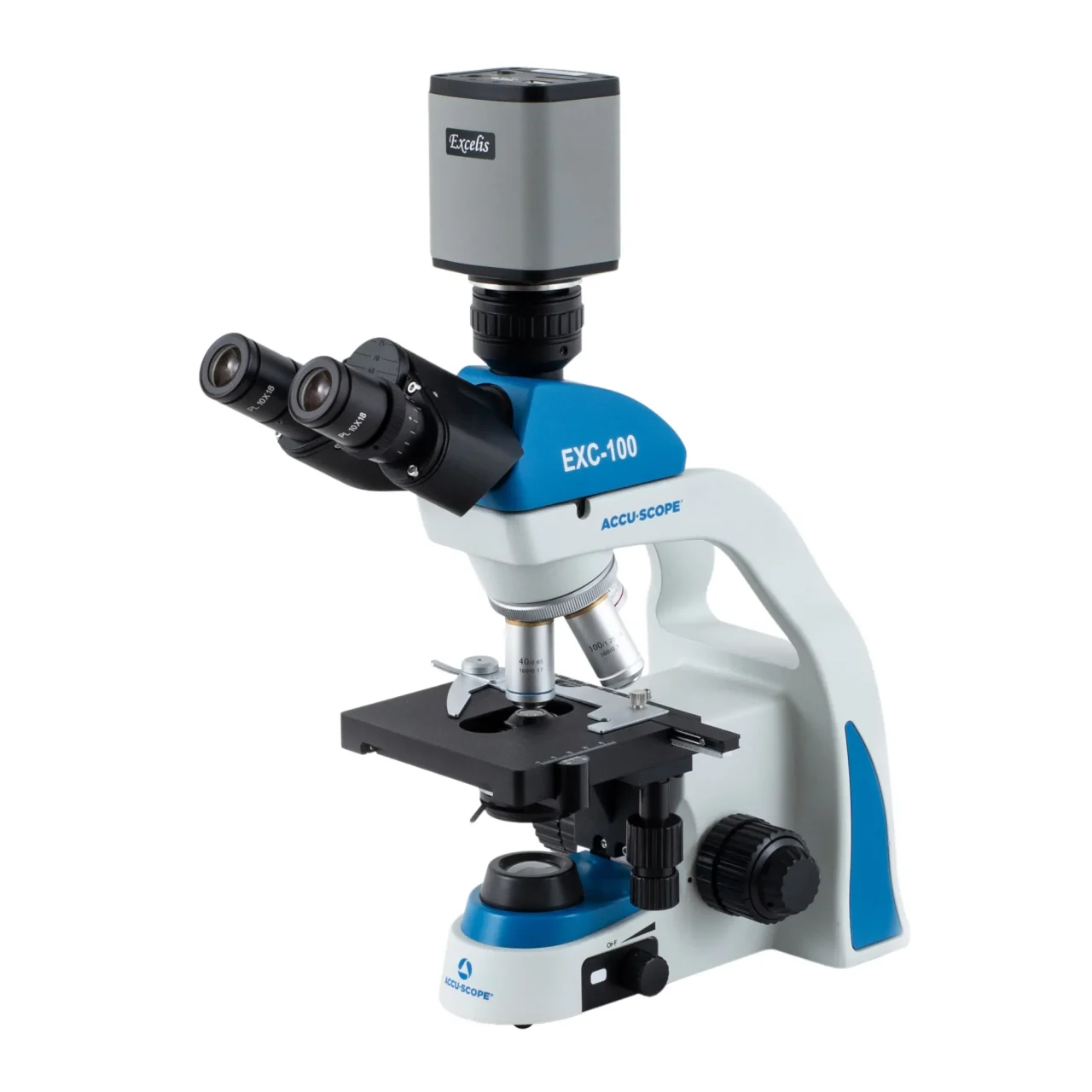

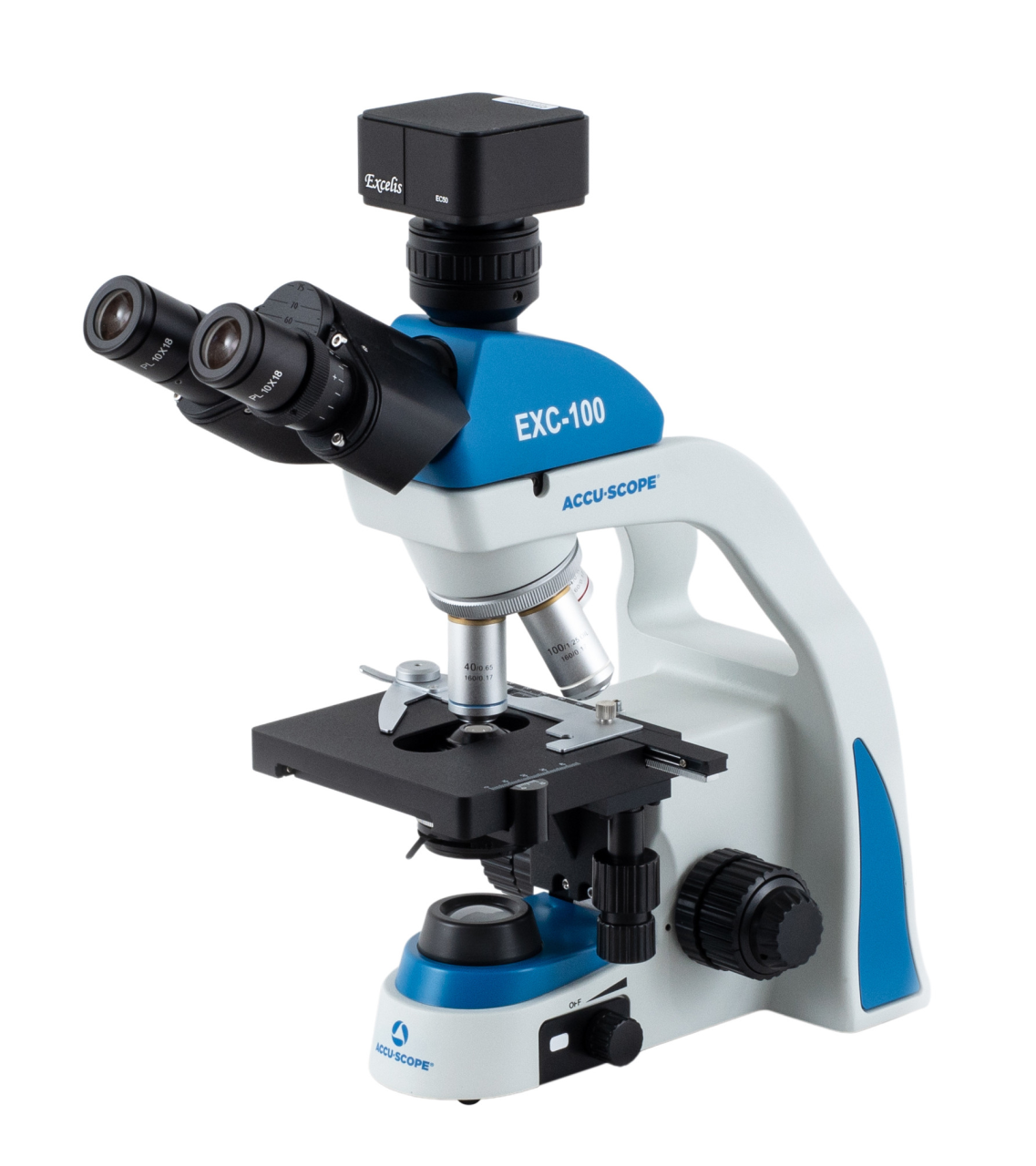

Optional: 0.35x, 0.5x, 0.65x and 1.0x C-mount camera adapters; Photo tube (requires camera adapter, not included)

Options
Digital cameras; darkfield annulus

Warranty
5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb
